Automated Narrow Aisle Truck

Automated Guided Vehicle System (AGV-S) 1.4 - 1.6t

  • 11000 - 13000 mm
  • 1400 - 1600 kg
  • Gradual automation

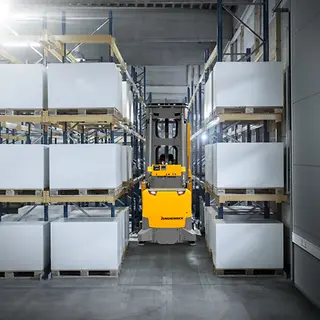

  • 360° safety sensor system for use in open narrow aisle warehouses
  • Pallet and clearance detection for the operation of existing racking in manual narrow aisle warehouses
  • Optional on-board battery charger for 24/7 operation
  • Planning, implementation and after sales support from a single source

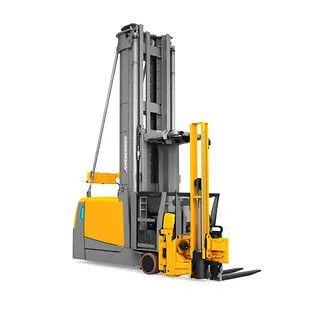

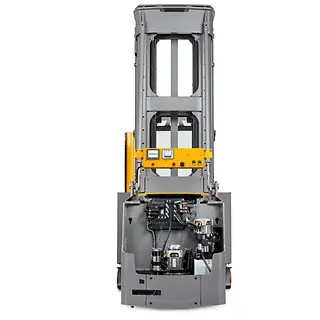

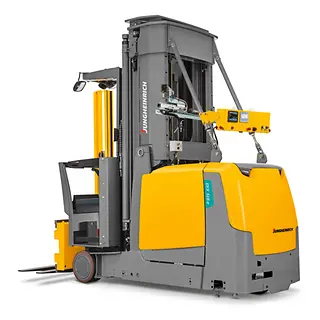

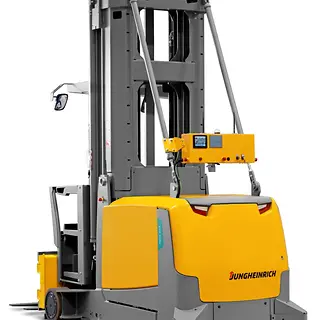

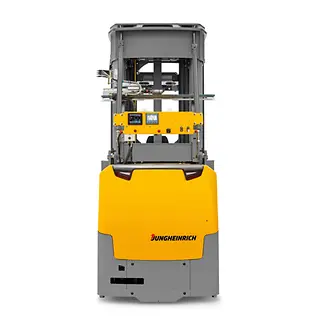

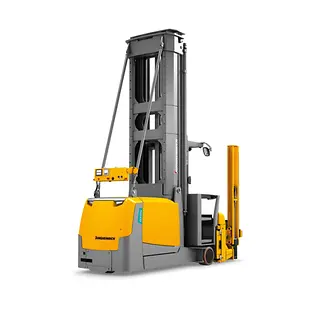

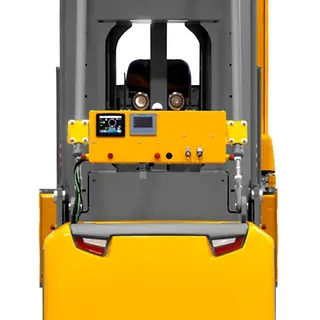

EKX 514a/ 516ka/ 516a

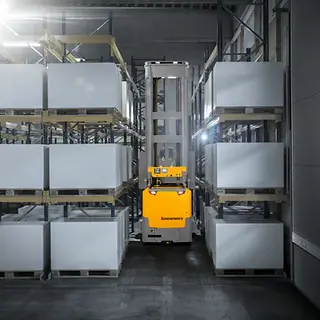

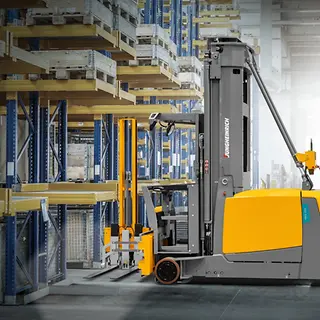

Our powerful and modular EKXa excels as a mobile robot, based on our proven EKX electric high level combination order picker / three-lateral stacker. The EKXa is characterised by maximum performance at lift heights up to 13,000 mm and sets benchmarks in automated narrow aisle warehouses. Equipped with an 80-V drive system and a maintenance-free synchronous reluctance motor, it achieves new performance standards while reducing energy loss at the same time. Thanks to the optional integration of an on-board battery charger, conductor rail and current collector, it is optimally prepared for 24/7 use. The optional 360° safety sensor system allows the EKXa to be used in an open, unfenced narrow aisle warehouse. The pallet and clearance detection option can be used to automate existing racking in previously manually operated narrow aisle warehouses. The field-tested wire guidance in combination with RFID transponders ensures precise positioning at the storage location as well as automated aisle changes. With the option of stepped automation, you can benefit from maximum availability, efficiency and performance of your warehouse processes.

Features

Model Overview

Model Load capacity Lift height Travel speed Battery voltage
EKX 514a 1,400 kg 11,000 mm 10.5 km/h 80 V
EKX 516ka 1,600 kg 12,000 mm 12 km/h 80 V
EKX 516a 1,600 kg 13,000 mm 12 km/h 80 V
