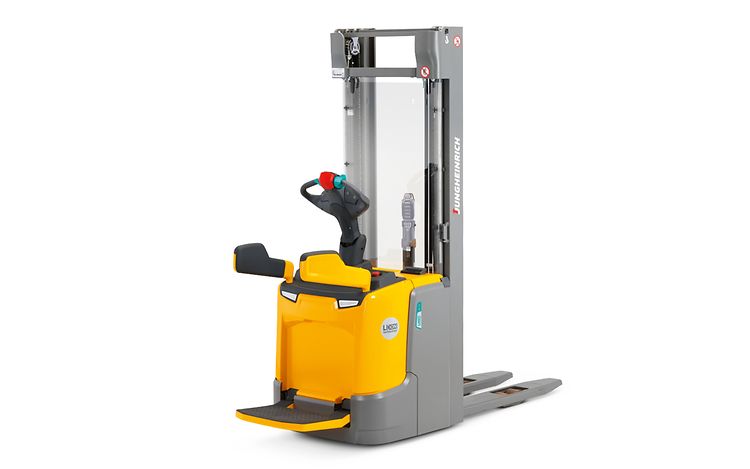

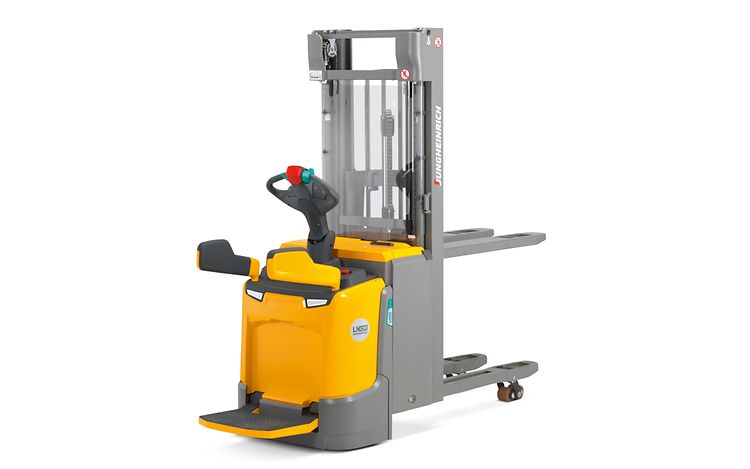

Pedestrian stacker 1.2 - 1.6t
2500 - 6000 mm
1200 - 1600 kg
The efficient and versatile electric stackers ERC are particularly well suited for the economic transport of goods over medium distances as well as for stacking and retrieval operations on higher racking levels. Fitted with a foldable stand-on platform, an optional support am lift or as wide-tread version, they impress with great flexibility. Their increased ground clearance lets them safely travel over ramps or uneven grounds. On request, the additional support arm allows for double-deck transport of two pallets at once, adding to the efficiency of your goods turnover. As a wide-tread variant, the ERC can also handle closed and perimeter-based Euro pallets. The strong and particularly precise lift motor allows for very gentle lifting and lowering of cargo in heights up to 6 meters. Furthermore, the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL ensure safe and efficient operations.
Flexibility in pedestrian mode
Fatigue-free work due to electric tiller steering.
curveCONTROL automatically reduces the speed to a safe level when cornering.
The sprung stand-on platform effectively alleviates strain on the operator's spine.
Soft lined side arms (optional) ensure comfortable support when cornering.
The low platform height ensures easy entry and exit.

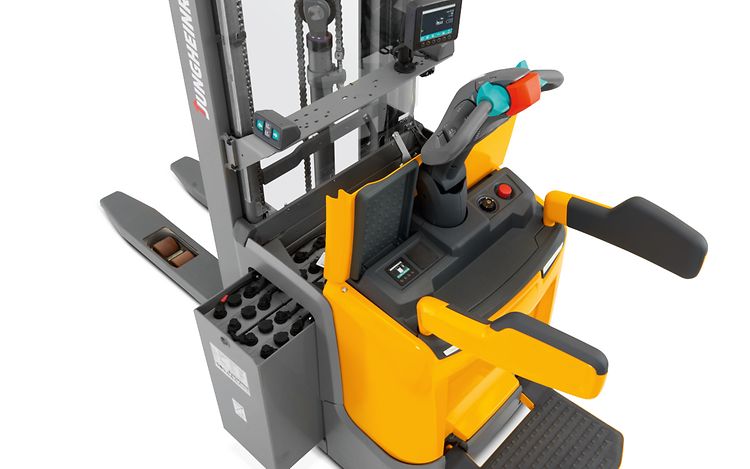

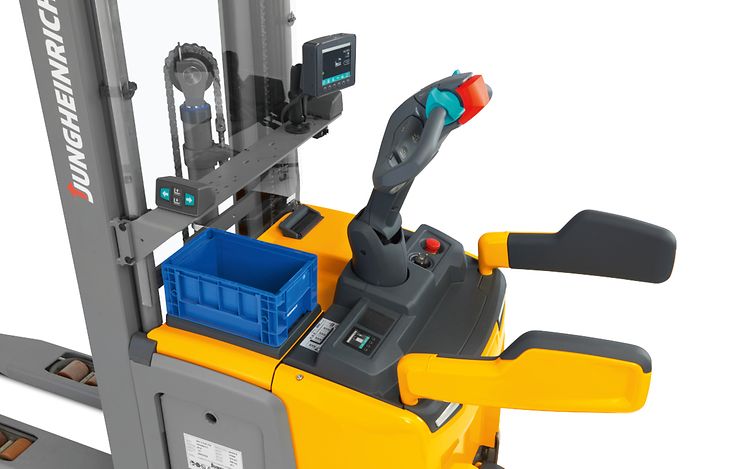

6-inch display (optional) used as central display and adjustment instrument offers the user control at a glance.
Standard display with battery charge status, number of operating hours and event messages.
Activation of the truck by EasyAccess via softkey, PIN code or optional transponder card.
Additional lift mechanism to raise the support arm lift independently of the forks.
Double-decker transport of 2 pallets simultaneously (optional).

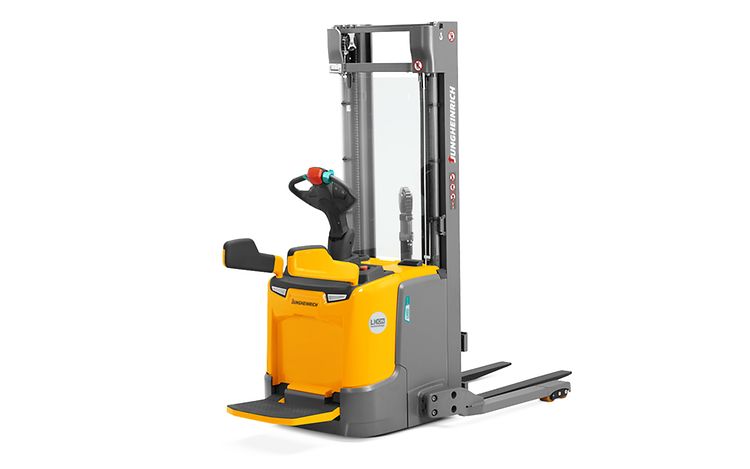

Wide-tread variant
Model | Maximum Load Capacity | Maximum Lift (h3) | Travel Speed | Overall Length | Battery Voltage |
ERC 212 | 1200 kg | 4700 mm | 11 km/h | 1955 mm | 24 V |
ERC 214 | 1400 kg | 6000 mm | 11 km/h | 1976 mm | 24 V |
ERC 216 | 1600 kg | 6000 mm | 11 km/h | 1976 mm | 24 V |
ERC 212z | 1200 kg | 4700 mm | 11 km/h | 2039 mm | 24 V |
ERC 214z | 1400 kg | 6000 mm | 11 km/h | 2060 mm | 24 V |
ERC 216z | 1600 kg | 6000 mm | 11 km/h | 2060 mm | 24 V |
ERC 212b | 1200 kg | 4700 mm | 11 km/h | 2030 mm | 24 V |
ERC 214b | 1400 kg | 6000 mm | 11 km/h | 2123 mm | 24 V |
ERC 216b | 1600 kg | 6000 mm | 11 km/h | 2123 mm | 24 V |
