Electric pedestrian pallet truck starter models

Electric pedestrian pallet truck 2000 kg

122 mm
2000 kg

Flexible entry-level truck for the daily transfer of pallets.
Extremely manoeuvrable thanks to compact dimensions.
Powerful and maintenance-free 3-phase AC motor.
Lithium-ion battery with rapid charge and boost charge functions.
Support wheels for maximum stability and entry rollers for easy pickup of closed pallets.

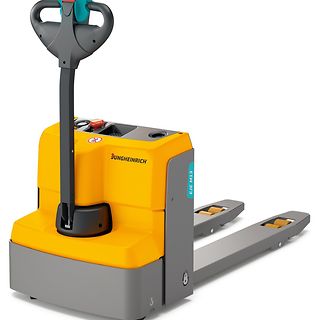

EJE M20

Our efficient and compact EJE M20 pedestrian pallet trucks are the perfect choice for the internal movement of goods in small and medium-sized companies. Thanks to their compact design and powerful motor, the manoeuvrable trucks enable the fast and cost-effective transport of pallets and goods – even in confined spaces. Jungheinrich's M series comprises hand pallet trucks equipped with powerful 3-phase AC technology and lithium-ion batteries to ensure minimum energy consumption and maximum productivity. Special entry rollers on the fork tips, which ensure low ground clearance and thereby facilitate the picking up of pallets, plus two sprung and cushioned support wheels, ensure that the trucks are particularly safe and stable. The ergonomic tiller head enables comfortable operation and safe working.

Features

Energy-saving operation

Greater efficiency thanks to economical energy management.
Intelligent, automatic cut-out if the truck is not used for more than 30 minutes.
Energy recovery through regenerative braking when reducing speed.
Optimum protection of battery and truck components.

Innovative drive and control technology

Powerful 3-phase AC drive motor for maximum efficiency.
Lower operating costs thanks to the perfect interconnection with the Jungheinrich controls.
Quick direction changes.
Maintenance-free drive motor.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
Boost charging during breaks and downtime allows round-the-clock availability of the trucks.
Cost savings thanks to maintenance-free batteries with longer service life
No charging rooms or ventilation required as there is no build-up of gas.

Optimum stability and ride comfort

Greater stability and reduced risk of transport damage thanks to two sprung support rollers located to the side of the drive wheel.
The support wheels provide optimum support in all driving situations.
The fork tips are equipped with entry rollers to facilitate the picking up of pallets.

Safe operation

Reduced risk of injury to the operator due to the low ground clearance of just 35 mm.
Completely enclosed frame and lift cylinder for maximum protection in any work situation.

Individual adaptation of the model

Eight different truck models for different customer requirements and a range of pallet sizes.
Both single and tandem load wheels available depending on the different application requirements.

Compact design

High manoeuvrability thanks to the short suspension system and low overall height for use in confined spaces.
Central arrangement of all important controls such as the battery discharge indicator, operating hour meter, emergency disconnector and key.
Sufficient storage space even with slim design.

Ergonomic working

Optimal adaptation of the truck to the ergonomic needs of the operator.
Less effort required during steering thanks to low-mounted tiller.
The tiller handle can be operated from either side for maximum ergonomics and safety.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJE M20 (540 x 1,000) Li-ion, tandem	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (670 x 1,000) Li-ion, tandem	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (540 x 1,150) Li-ion, tandem	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (670 x 1,150) Li-ion, tandem	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (540 x 1,000) Li-ion, single	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (670 x 1,000) Li-ion, single	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (540 x 1,150) Li-ion, single	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
EJE M20 (670 x 1,150) Li-ion, single	2,000 kg	122 mm	5 km/h	1,585 mm	25.6 V
