Sideways-seated pallet truck 3.0t

115 mm
3000 kg

Multi-pallet transport with up to three pallets.
High travel speeds up to 14 km/h thanks to 48-V 3-phase AC technology.
Available with advanced lithium-ion technology.
180° / 360° steering for quick direction changes.
Ergonomic operator position with high degree of comfort.

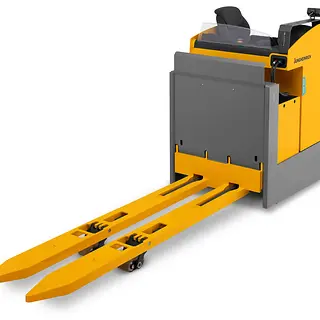

ESE 420/ 430

Our reliable and agile ESE Series 4 electric transverse-seated pallet trucks are ideal for multi-pallet transport during longer shifts or over long distances. A 48-V 3-phase AC motor ensures dynamic work processes and high end speeds with maximum throughput. Choose sustainable, maintenance-free battery technology: thanks to state-of-the-art lithium-ion batteries, you can benefit from short charging times, best performance and high profitability with our ESE trucks. The easily accessible comfort charging interface enables rapid booster charging at any time, while ergonomic highlights such as the optimised steering wheel position, easy-to-reach controls and a multifunctional operator display make working with the ESE 4 highly efficient.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Powerful 3-phase AC technology

Powerful acceleration and high drive dynamics.
Top speeds of up to 20 km/h.
Maintenance-free 3-phase AC motors without carbon brushes.

Advanced lithium-ion technology

Lithium-ion batteries with power between 48 V 390 Ah and 520 Ah.
Fast and booster charging via the integrated comfort charging interface during breaks or downtime for maximum truck availability.
Reliably high performance even when not fully charged.
No battery care and maintenance costs.
Also available with lead-acid battery.

Effective truck protection

EasyAccess Softkey access system to protect against unauthorised use.
Assignment of drive authorisations directly via the truck display.
Universal truck key no longer required.
Energy-saving function with automatic switch-off after 5 minutes for all EasyAccess access systems.

Robust and safe

Robust frame for continuous use at full rated load.
Torsion-resistant forks manufactured with strong reinforced steel, available in different versions.
Marking on forks for easy entry into pallets.

Reduced maintenance costs

Easily accessible components.
Large, easy to open service hatches.
Maintenance-free 3-phase AC drive motor without carbon brushes.

Optimum operator support

Three individually adjustable travel programs for a wide range of applications.
4-inch truck display for showing the most important operating data such as speed, kilometres driven or operating hours.
zoneCONTROL assistance system for efficient hazard management in the warehouse available as an option.

Ergonomic operator's cabin

Operator's seat individually adjustable according to seating position and body weight.
Easy accessibility to all important controls.
180° / 360° 3-phase AC steering with improved steering wheel position.
Options bracket with large space and fixed mounting options for additional equipment such as terminals, writing boards or shrink wrap holders.
Steering wheel adjustment.
USB charging socket.

Maximum ease of use

Control lever for activating all hydraulic functions, selecting direction of travel and sounding the horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Precision operation due to sensitive control of all functions.
