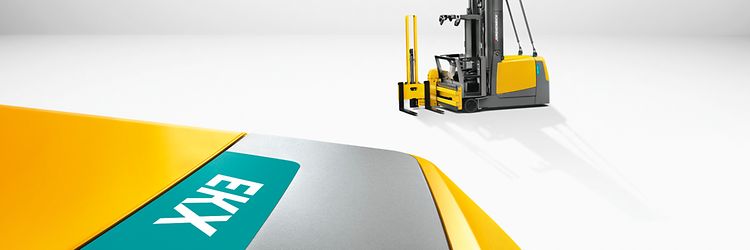

EKX 410/ 412/ 514/ 516k/ 516

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Leading throughintelligence.

Lift your productivity to a new level.

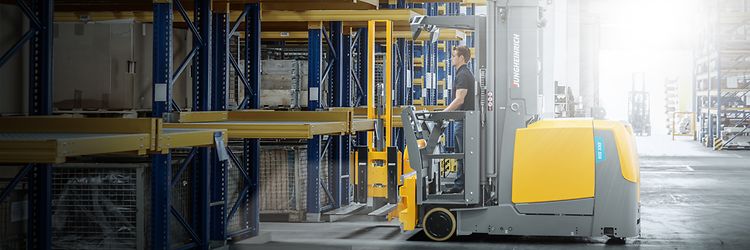

Number one in narrow aisle warehouses: EKX, the new generation of high-rack stackers from Jungheinrich. Now you can take advantage of the latest technologies and intelligent solutions for maximum productivity.

Your advantages at a glance

Award-winning

• IFOY Award
• Best of Industry Award
• iF Design Award
• Red Dot Design Award

Learn more

Experience the new EKX

More productivity in less space.

Thanks to our intelligent narrow-aisle warehouse solution.

Create more pallet locations requiring less space and benefit from lower costs per pallet location. We also offer competent support as your partner in planning system solutions.

Your advantages at a glance:

• Up to 30 percent more usable storage space compared to wide-aisle warehouses.
• Significantly higher throughput performance than with counterbalanced trucks or reach trucks.
• Lower costs per pallet location.
• Comprehensive system solutions – we will be happy to advise you.

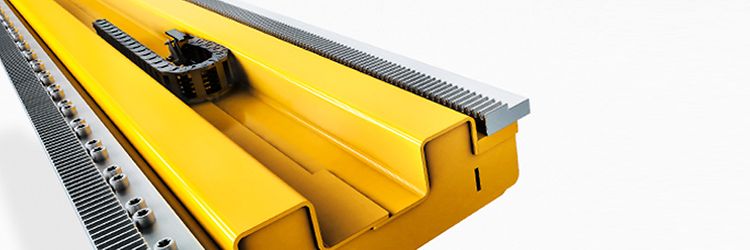

Better performance on uneven surfaces.

With patented vibration damping.

Don't let anything slow you down – not even the condition of your floor. Vibration damping by Jungheinrich makes this possible. This world first in the high-rack stacker market ensures more safety and better performance for the EKX series 5, even on uneven surfaces.

Your advantages at a glance:

• More reliability and better driving characteristics on uneven surfaces.
• Smoother ride thanks to less side sway.
• Increased speed for more throughput performance.
• Optionally retrofittable performance modules for the EKX series 5.

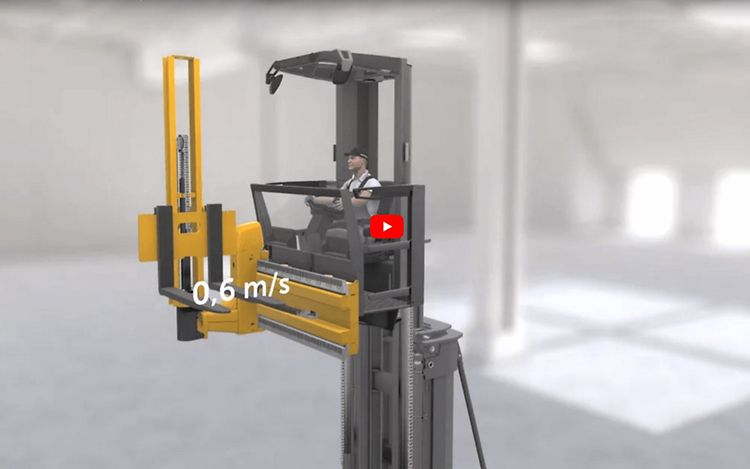

liftPLUS

Increasing the lift speed to 0.6 m/s, liftPLUS* takes you to a lift height of up to 17.5 metres faster than any other high-rack stacker.

Learn more

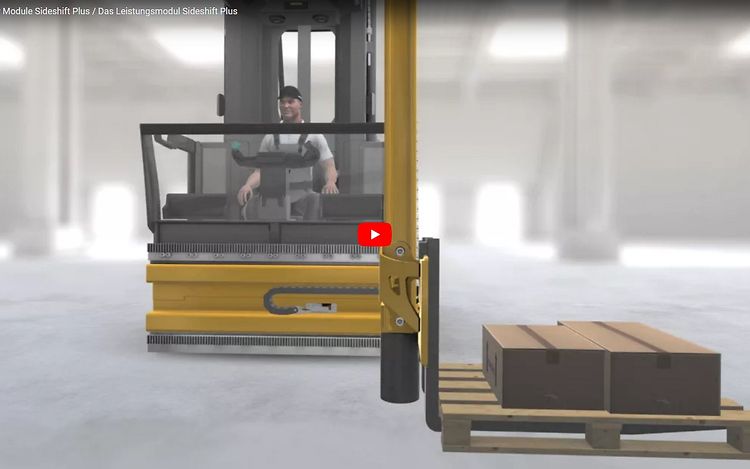

sideshiftPLUS

The reach distance is extended by 100 mm, making it easier to handle different load sizes and also to manoeuvre in smaller aisles.

Learn more

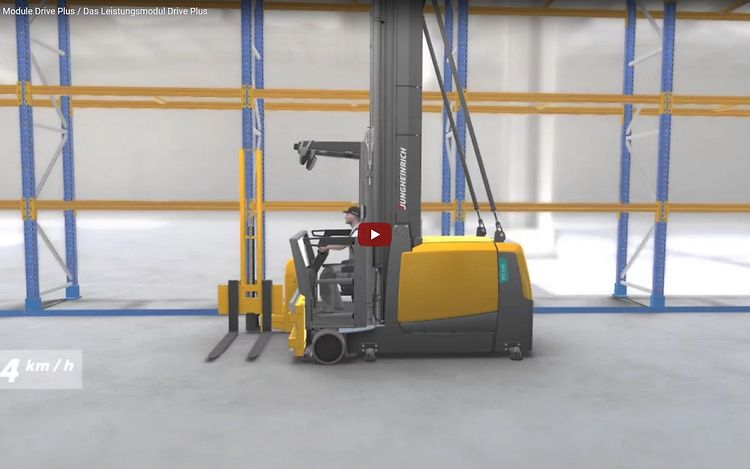

drivePLUS

With an increased travel speed of up to 12 km/h you can further boost your throughput.

Learn more

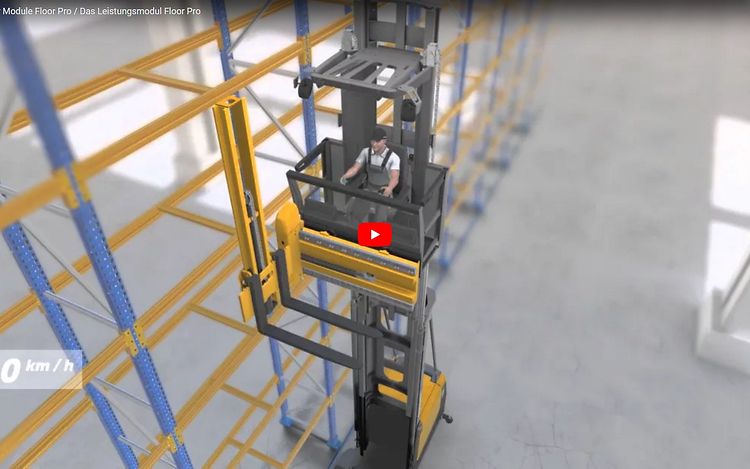

Floor Pro

Thanks to vibration absorbers located in the boom you benefit from enhanced safety, more operator comfort and therefore better performance on uneven surfaces.

Learn more

speedprofilePLUS

The lower the load, the higher the speed. With the intelligent system speedprofilePLUS you can improve your throughput.

Learn more

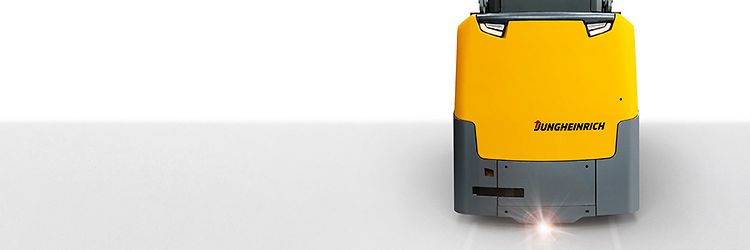

More cost-effective operation.

Thanks to top energy efficiency.

Cut costs and extend your operating times – with the new EKX. Thanks to innovative synchronous reluctance motors and double energy recovery, you can cover two shifts with just one battery charge.

Your advantages at a glance:

• Higher throughput performance thanks to lift speed of up to 0.6 m/s and reaching speed of up to 0.5 m/s.
• Intelligent lightweight construction boosts capacity by 100 kg.
• Lowest consumption in its class thanks to the latest synchronous reluctance motor technology.
• Two shifts without changing the battery thanks to efficient energy management.

2SHIFTS1CHARGE GUARANTEE

Thanks to the optimised energy management of the new EKX you are guaranteed to be able to work 16 hours (two shifts) with only one battery charge.

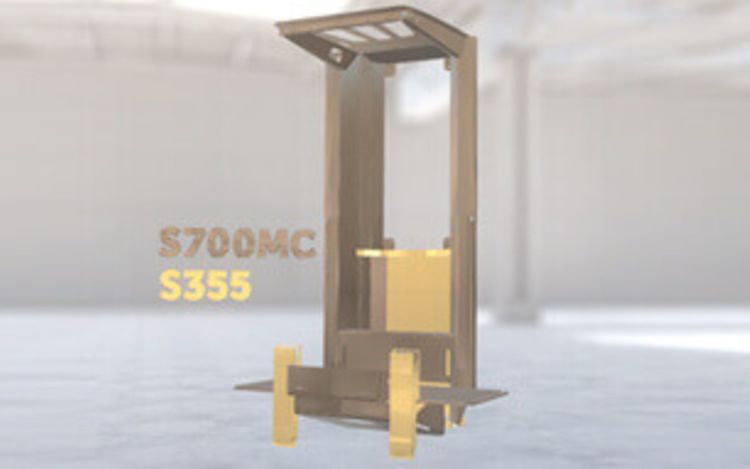

INTELLIGENT LIGHTWEIGHT CONSTRUCTION

 High-tensile steels ensure 100 kg more capacity with less weight. For more load capacity in high heights



THE NEXT LEVEL OF ENERGY RECOVERY

The EKX not only saves you energy, you even recover energy when braking and lowering. That makes it the most efficient truck in its class.



DOUBLE YOUR ADVANTAGE

With the combination of synchronous motors and three-phase asynchronous motors you benefit from up to 15 % less energy consumption.

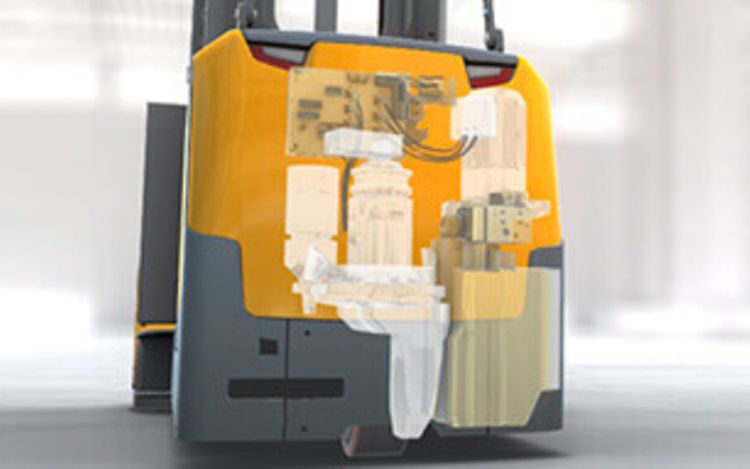

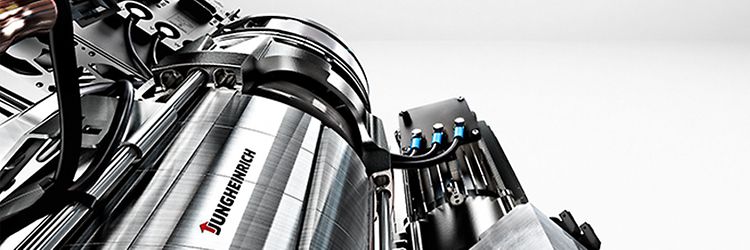

SYNCHRONOUS DRIVES

Our maintenance-free synchronous reluctance motor technology ensures more performance with reduced loss of energy and thus more work cycles in a shorter time.



MORE THROUGHPUT PERFORMANCE

With a lift speed up to 0.6 m/s and a reaching speed up to 0.5 m/s you can increase your hourly pallet throughput.



More support for the operator.

Thanks to practical intelligence.

Moving more with less effort – that is the principle we perfected in the EKX. The innovative new operating concept creates an optimum workstation: Carefully considered details, smart assistance systems and thoroughly successful ergonomics ensure that the operator can concentrate on his work.

Your advantages at a glance:

• The perfect workstation, oriented in every way to the operator's needs.
• Optimum freedom of movement with the lowest entry in its class and individually adjustable controls.
• Modular personal protection and collision avoidance system ensures safety, reliability and flexibility.
• Innovative and intelligent assistance systems that can be selected and combined depending on the application to provide support for the operator.

ORDER PICKING, EASIER THAN EVER

With a folding gate for better range, order picking lights (Pick-by-Light) and upholstered knee supports the EKX is perfectly equipped for daily operation.

Learn more

EVERYTHING UNDER CONTROL

The control panel with adjustable height and tilt is the central control unit. That means the operator always has a clear view of important information.

Learn more

SAFETY ON BOARD

The integrated personal protection system offers reliable all-round safety. The PSS Anti Collision system  enables you to use multiple trucks in one aisle.

Learn more

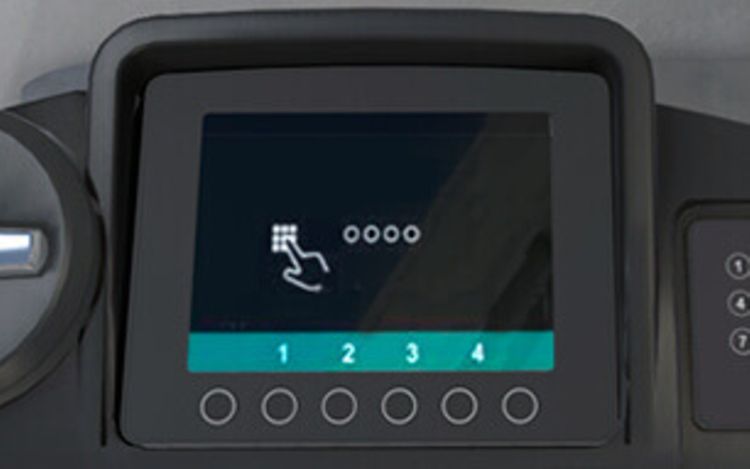

EASYACCESS AND ISM ONLINE

Easy access using softkey, PIN code or transponder protects against unauthorised access. The ISM Online information system for optimising your truck fleet.

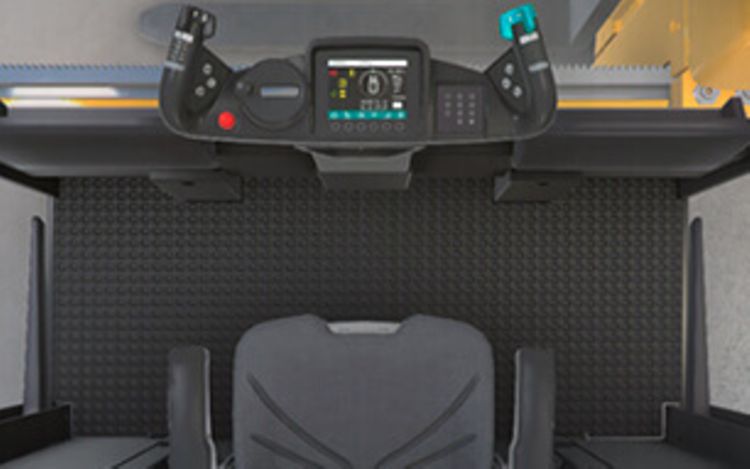

PERFECTLY POSITIONED

An adjustable comfort seat, best all-round visibility and more room create a workstation that could not be more perfectly matched to the operator's needs.



More efficiency for every task.

Thanks to intelligent navigation and system integration.

Any automatic system is only as good as the interaction of its elements. Our logistics interface ensures that the intelligent technology in the EKX works together optimally with your warehouse management system. That means every delivery process runs significantly faster with EKX warehouse navigation using RFID technology.

Your advantages at a glance:

• Smart assistance systems supporting navigation and operation – guaranteeing you enhanced safety and throughput performance.
• Simple connection to existing warehouse management systems thanks to the Logistics Interface by Jungheinrich – for constant communication between the truck and the warehouse management system.
• Precise tracking through RFID technology which also allows for manual, semi-automatic or fully automatic* mode.
• Optimum speed at all times, automatically adjusted to the current surface conditions.

INDIVIDUAL SPEED ADJUSTMENT

Damit der EKX auf jeder Art von Boden mit der optimalen Geschwindigkeit unterwegs ist, kann die Fahrgeschwindigkeit an Ihre Bodentopologie angepasst werden.

Learn more

ALWAYS FLEXIBLE

All safety circuits are controlled by RFID tracking and can be easily and quickly programmed and adjusted.

Learn more

OPTIMISED NAVIGATION AND SAFETY

The connection to the Warehouse Management System ensures that orders are transferred directly to the EKX.

Learn more

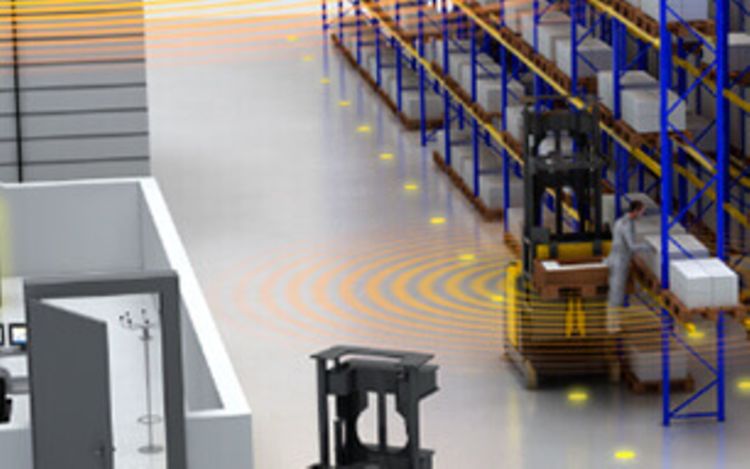

RFID TECHNOLOGY

This transponder technology ensures precise tracking in narrow aisles at all times. It supports manual, semi-automatic and fully automatic operation.



JUNGHEINRICH LOGISTICS INTERFACE

The middleware for an easy connection to existing warehouse management systems ensures more efficiency in workflows.

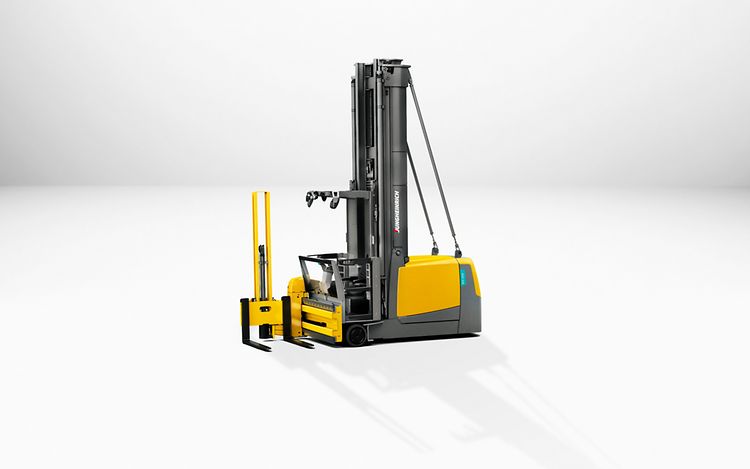

More options for all requirements.

Thanks to maximum flexibility.

The best solution for you takes into account all the special features of your warehouse. That's why we developed our modular system to offer you a unique range of available configuration options. And if your situation changes, you can adapt your EKX at any time. That's maximum flexibility. Today and in the future.

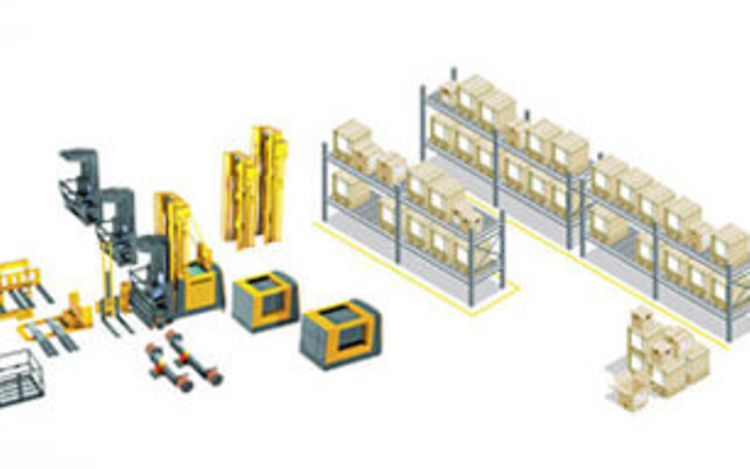

MODULAR SYSTEM

The Jungheinrich modular system offers two platforms to match the EKX exactly to your requirements.

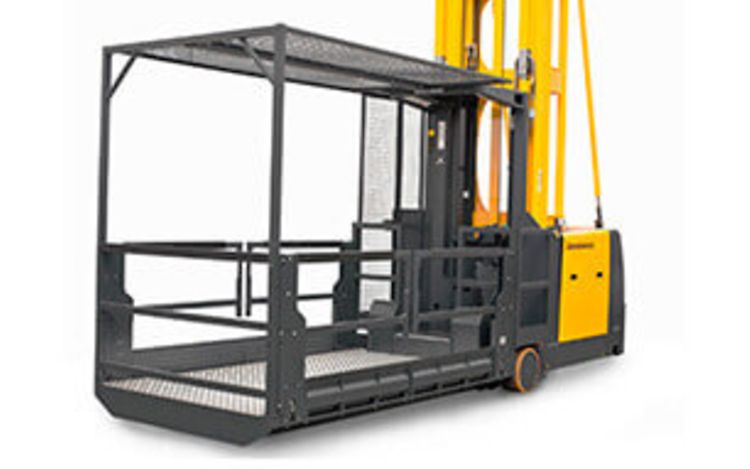

CUSTOM-MADE

We combine perfection in series production, and we also deliver custom-made solutions ex works. Developed with engineering skill and experience.



PROFI-PLUS

With up to seven power modules, the EKX becomes a true warehouse wonder weapon: faster, higher, stronger, longer, better.



MORE OPTIONS. MORE POWER.

With these individually selectable intelligent power packages you can boost the performance in exactly the areas where you need more power.



More support for all your questions.

With comprehensive service.

Non-stop top performance: Thanks to our unique service competence. We combine speed with know-how. Whatever your need – commissioning, maintenance, repairs or a security check – Jungheinrich guarantees you premium services around the clock. We back that up with 60 years of experience.
