Mobile robot high-stack applications 1300 / 1700 kg

3100 - 4400 mm
1300 - 1700 kg

Compact design for narrow aisle widths.
Efficient, process-reliable completion of routine tasks.
Optimised transport routes thanks to precise laser navigation.
Extensive safety systems for use in mixed operations.
Short payback period thanks to process optimisation.

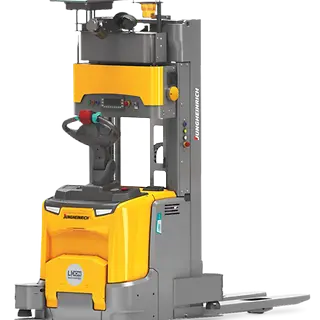

ERC 213a / 217a

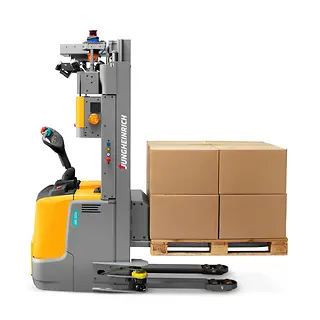

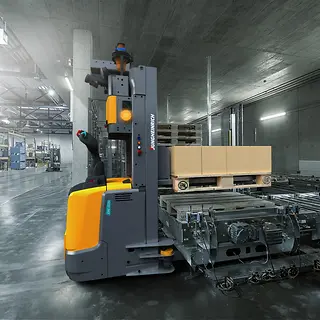

As an Automated Guided Vehicle (AGV), our reliable and versatile ERCa takes on recurring transport tasks. Due to its compact design, the ERCa is the perfect choice to boost the efficiency of your transport processes in narrow spaces. A 2.8 kW 3-phase AC motor ensures constant power and the electrically controlled, high-performance lift motor ensures gentle, quiet lifting and lowering – even at high lift heights. Safety is enhanced by the sturdy construction with its steel frame and enclosed structure. The use of our Automated Guided Vehicles in mixed operation is guaranteed by safety systems such as the standard personal protection scanners. Depending on the speed, these scanners scan the travel route for obstacles: in the direction of travel, load direction and when cornering. The vehicle navigates by means of laser navigation. Reflectors on the travel route or a combination of reflectors and environmental features can be used for this purpose. The stacker truck is based on our tested standard truck and can be easily integrated into existing IT structures or used as a stand-alone system.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Benefits

Features

Established standard truck used as basis.

The basic ERC electric pedestrian pallet truck in combination with comprehensive safety technology as well as automation and navigation components.
Future-proof investment through design of safety equipment in accordance with current standards.
Simple manual operation in mixed mode is performed via the standard controls of the production truck.

Efficient drive technology and equipment.

2.8 kW 3-phase AC drive motor. Optional 3.2 kW with the drivePLUS option.
Automatically controlled high-performance lift motor giving energy-efficient lifting and lowering.
Sturdy design with steel frame and enclosed frame contours.

Lithium-ion technology.

High availability thanks to extremely short charging times.
No battery exchange required.
Optionally available with automatic charging.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build up of gas.

Safety system installed in the truck.

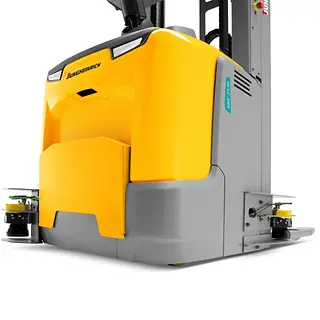

Standard personal protection scanner in the drive direction and load direction scans the travel route in front of the AGV for obstacles depending on the speed.
Should an obstacle be located in the path of the truck, the AGV will reliably come to a halt in front of it.
The sensor also scans ahead for obstacles when cornering.
Emergency disconnect on the truck.

Process reliability in the warehouse.

Everything at a glance – with the AGV-S control panel.
The graphic display on the AGV control panel displays all the information relating to the AGV in use.
Quick overview of the status of pending transport tasks.
Prioritised orders can be entered and processed in the corresponding order.
Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Simple system integration.

Integration into existing IT and network landscapes possible.
Effortless connection to existing WMS/ERP system via Jungheinrich Logistics Interface.
The existing Wi-Fi structure can be used for communication.

Precise navigation.

Millimetre-accurate positioning of trucks and loads at the defined stations.
Different navigation types can be used as hybrid navigation.
Project- and environment-specific design and implementation.

Optional system enhancements.

Charging contact plates on the AGV for automatic battery charging.
Floor spot.
Barcode scanner.
Obstacle detection scanner.








Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ERC 213a	1,300 kg	4,400 mm	9 km/h	2,393 mm	24 V
ERC 217a	1,700 kg	4,400 mm	7 km/h	2,393 mm	24 V
