Electric reach truck 1400 / 1600 / 1800 / 2000 kg

5000 - 11510 mm
1400 - 2000 kg

Drive, lift and steering motors use 3-phase AC technology
Improved manoeuvrability through compact frame design
Electric 180° steering and integrated sideshift fitted as standard
Smooth hydraulic operation with soloPILOT control lever
High operating safety with curveCONTROL

ETV 114n/ 116n/ 118n/ 120n

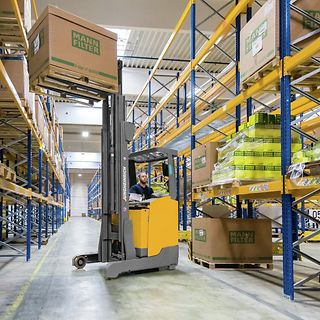

Jungheinrich ETV 1n reach trucks provide the best solution for cost-effective stacking and retrieval at high lift heights and in confined spaces. Be it when handling pallets (operating in drive-in racking), in narrow or low areas, or single shift or multi-shift applications, the ETVn Series 1 reach trucks are suited to every application, with four different capacity ranges.

Features

High-performance mast

Excellent visibility towards the load.
Integrated sideshift.
Lowest closed mast height with high lift heights.
Extremely long service life due to high-quality mast profiles.
High residual capacities up to high lift heights.
Lift heights up to 9,020 mm with mast tilt and 11,510 mm with fork tilt.

More efficient with 3-phase AC technology

Powerful acceleration.
Fast reversing without delay.
High availability due to maintenance-free motors without carbon brushes.
Longer operating times due to energy recovery while reducing travel speed.

Ergonomic cab

Comfortable seat with adjustment options (sitting position / backrest / body weight) for every operator.
Plenty of storage options.
The important truck controls are within easy reach.
Generous space.
3-phase AC steering (180° or as an option 360°) with stress-free steering wheel position.
Horizontal / vertical steering wheel adjustment.

Easy-to-read operator display

Travel direction and wheel position indicator.
180° / 360° steering mode.
Battery discharge indicator with residual running time.
Three adjustable travel programs to suit every requirement.
Operating hours and time.

Effortless operation with soloPILOT

All operating functions are in view.
Additional attachments, such as fork spreaders (optional), are also easily controlled with the soloPILOT.
Precise operation through sensitive control of all functions.
Comfortable working position.
multiPILOT available as option.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV 114n	1,400 kg	9,020 mm	10 km/h	2,346 mm	48 V
ETV 116n	1,600 kg	10,700 mm	10 km/h	2,418 mm	48 V
ETV 118n	1,800 kg	9,020 mm	10 km/h	2,518 mm	48 V
ETV 120n	2,000 kg	11,510 mm	10 km/h	2,518 mm	48 V
