Electric reach truck 1.4 - 2.5t

10700 - 14000 mm
1400 - 2500 kg

Optimised for lowest energy consumption and maximum productivity.
Lithium-ion battery with rapid and booster charging capability.
Compact design for optimal space utilisation in the warehouse.
Spacious operator position with optimal visibility of support arms and load.
SmartStripe light strip to increase safety in the warehouse.

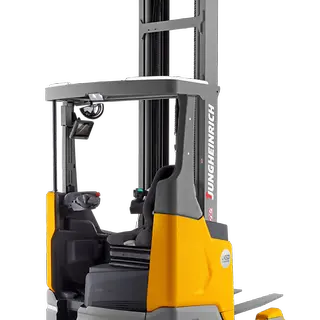

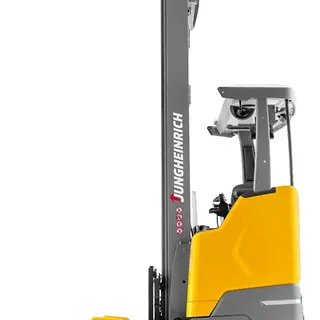

ETV 314i-325i

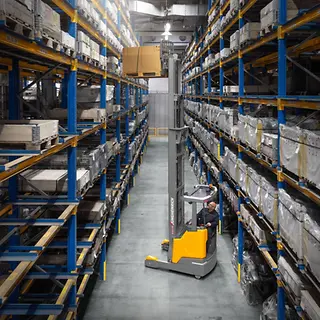

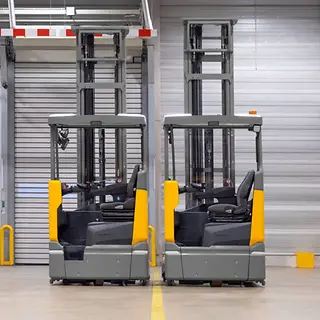

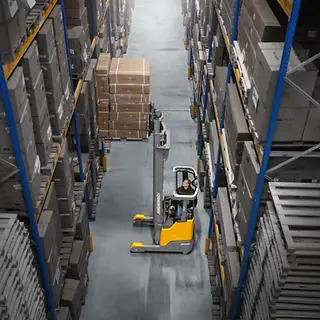

The powerful and innovative ETV 314i / 325i reach trucks are skilled tools for the efficient storing and removal of loads at lift heights of up to 14 m. The compact truck concept impresses with a fully integrated lithium-ion battery, which is extremely flexible in use thanks to its rapid and booster charging capability. Thanks to performance-enhancing options for adjusting the lowering and travel speeds, demanding applications with high lift and travel speeds can be handled particularly economically. Generously designed workplace offers user-friendly ergonomics and safety. Excellent visibility, intelligent assistance systems and an intuitive operating concept enable productive, fatigue-free work.

Features

Integrated lithium-ion technology

High availability thanks to extremely short charging times.
Neither charging rooms nor ventilation required as there is no build-up of gas.
Cost savings through extended service life and zero maintenance requirements.
No battery exchange required.

High-performance mast

For maximum safety and effective utilisation of warehouse space even at high lift heights.
High residual load capacities with reduced dimensions.
Available with mast tilt and fork tilt.

loweringPRO option

loweringPRO boosts performance by doubling the lowering speed to up to 1.2 m/s.
The smooth mast transition ensures the lifting and lowering of goods with the utmost safety.

Enhanced safety

Optimised visibility due to the removal of the lead-acid battery.
Narrow roof struts for perfect all-round visibility.

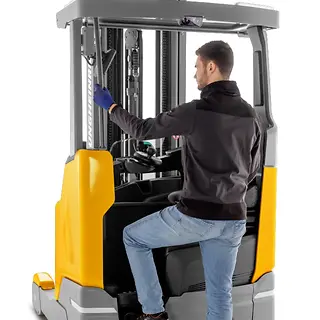

Low entry step for safe entry and exit.
Solid shoulder protection.
Optional raised windscreen.
Optional panorama glass roof.
Integrated SmartStripe light strip available as an option.
Brake light and direction indicators available as an option.

Enhanced safety

Optimised visibility due to the removal of the lead-acid battery.
Narrow roof struts for perfect all-round visibility.
Low entry step for safe entry and exit.
Solid shoulder protection.
Optional raised windscreen.
Optional panorama glass roof.
Integrated SmartStripe light strip available as an option.
Brake light and direction indicators available as an option.

Wide range of assistance systems and options

Positioning laser for simplified stacking of the load.
Permanent monitoring of the limit capacity via operationCONTROL.
Fork camera with monitor.

4-inch full-colour display

Travel direction and wheel position indicator.
Battery status with residual time display.
Three selectable travel programs.
Operating hours and time of day.
Optional indication of lift height and load weight.

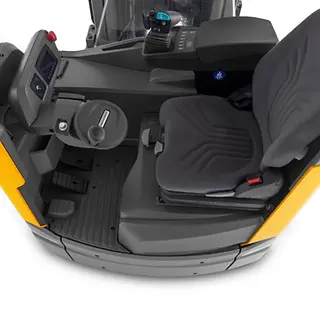

Ergonomic workplace

Extended space in the cockpit.
Available with an optional entry step.
Armrest and steering wheel can be adjusted separately with minimum effort.
Installation of holders for additional equipment like radio data terminals or scanners is possible.
Practical storage options.
Comfort charging.

soloPILOT control lever

For activating hydraulic functions, selecting the direction of travel, and horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Travel direction switch, features intuitive direction change.
Precision operation due to sensitive control of all functions.
Optimum control of additional attachments, such as an optional fork positioner.
multiPILOT control lever optionally available.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV 314i	1,400 kg	10,700 mm	14 km/h	2,437 mm	51.2 V
ETV 316i	1,600 kg	10,700 mm	14 km/h	2,437 mm	51.2 V
ETV 318i	1,800 kg	11,510 mm	14 km/h	2,466 mm	51.2 V
ETV 320i	2,000 kg	14,000 mm	14 km/h	2,466 mm	51.2 V
ETV 325i	2,500 kg	14,000 mm	14 km/h	2,491 mm	51.2 V
